BRICK MASONRY CONSTRUCTION

BRICK MASONRY CONSTRUCTION

Good brick masonry should utilize bricks which are sound, hard, well burnt and tough with uniform colour shape and size. 2. The bricks should be compact, homogeneous, free from holes, cracks, flaws, air-bubbles and stone lumps. These bricks should be properly soaked in water for at least two hours before use.
brick is building material used to make walls, pavements and other elements in masonry construction. Traditionally, the term brick referred to a unit composed of clay, but it is now used to denote rectangular units made of clay-bearing soil, sand, and lime, or concrete materials.
English bond is considered as the strongest and most widely used brick bond in construction work. It consists of alternate course of headers and stretchers. In this arrangement, vertical joints in the header and stretcher courses come over each other.
Brick veneer is actually a single layer of full-sized bricks installed adjacent to a home's exterior wall. The inner wall bears the weight of the structure and not the brick. In this instance, the brick serves as a decorative element only.

BRICK MASONRY CONSTRUCTION

Top 7 Types of Bricks Used In Indian Construction
  1. Sun-Dried Bricks. Also called un-burnt bricks, these are one of the most primitive examples of bricks, this type of brick was not burnt in kilns but were dried in the sun for hardening. ...
  2. Burnt Clay Bricks. ...
  3. Fly Ash Bricks. ...
  4. Concrete Bricks. ...
  5. Engineering Bricks. ...
  6. Calcium Silicate Bricks. ...
  7. Porotherm Smart Bricks Or Eco Bricks.

BRICK MASONRY CONSTRUCTION

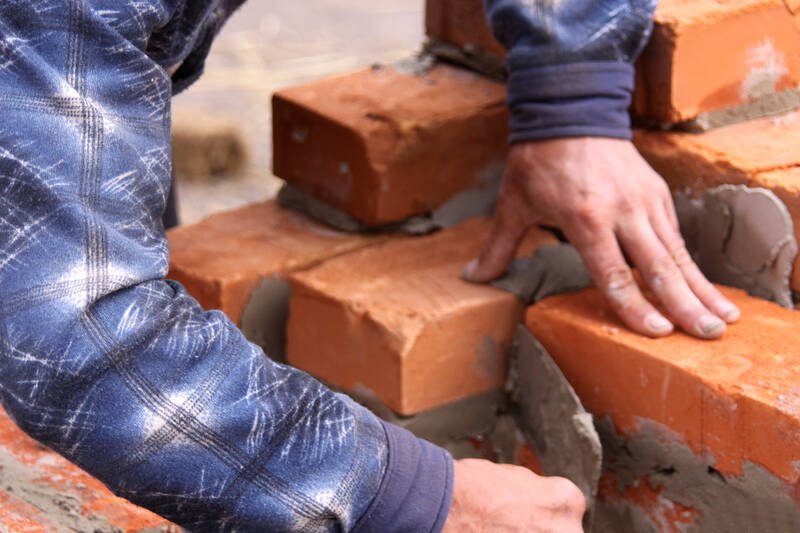

SOME TIPS OF BRICK MASONRY CONSTRUCTION

  1. Good brick masonry should utilize bricks which are sound, hard, well burnt and tough with uniform colour shape and size.
  2. The bricks should be compact, homogeneous, free from holes, cracks, flaws, air-bubble and stone lumps. These bricks should be properly soaked in water for at least two hours before use.
  3. In the brick work, the bricks should be laid on their beds with the frogs pointing upwards.
  4. The brick courses should be laid truly horizontal and should have truly horizontal and should have truly vertical joints.
  5. As far as possible the use of brickbats should be discouraged.
  6. As far a possible the brick walls should be raised uniformly with proper bond.Generally the height of brick masonry construction in a day should be less than 1.5m. The maximum difference in rise of the wall between the different portions should not be more than one meter.
  7. When the mortar is green, the face joints should be raked to a depth of 12 to 19mm in order to have a proper key for plastering or pointing. The mortar joints should be stuck flush and finished if no plastering or pointing is to be done.
  8. In order to ensure continuous bond between the old and the new, the walls should be stopped with a toothed end.
  9. Finished brickwork in lime mortar should be cured for a period of 2 to 3 weeks. This period can be reduced to 1 to 2 weeks in case of brickwork with cement mortar.
  10. In order to carry out the brickwork at higher level, a single scaffolding is used.
BRICK MASONRY CONSTRUCTION

The metal ties are then bent so that they are horizontal where they become imbedded in the mortar joints as the brick veneer wall is constructed. The brick veneer is built on the outer edge of the foundation wall so that a one inch air space remains between the brick veneer and the sheathing.

ब्रिक मेसनरी निर्माण
अच्छी ईंट की चिनाई ईंटों का उपयोग करना चाहिए जो एक समान रंग और आकार के साथ ध्वनि, कठोर, अच्छी तरह से जली हुई और सख्त हैं। 2. ईंटें कॉम्पैक्ट, सजातीय, छिद्रों, दरारें, खामियों, हवा-बुलबुले और पत्थर की गांठों से मुक्त होनी चाहिए। इन ईंटों को उपयोग करने से पहले कम से कम दो घंटे तक पानी में भिगोकर रखना चाहिए।
एक ईंट निर्माण सामग्री है जिसका उपयोग चिनाई निर्माण में दीवारों, फुटपाथ और अन्य तत्वों को बनाने के लिए किया जाता है। परंपरागत रूप से, ईंट शब्द मिट्टी से बनी एक इकाई के रूप में संदर्भित किया जाता है, लेकिन अब इसका उपयोग मिट्टी के असर वाली मिट्टी, रेत और चूने या कंक्रीट सामग्री से बने आयताकार इकाइयों को निरूपित करने के लिए किया जाता है।
अंग्रेजी बॉन्ड को निर्माण कार्य में सबसे मजबूत और सबसे अधिक इस्तेमाल किया जाने वाला ईंट बॉन्ड माना जाता है। इसमें हेडर और स्ट्रेचर के वैकल्पिक पाठ्यक्रम शामिल हैं। इस व्यवस्था में, हेडर और स्ट्रेचर पाठ्यक्रमों में ऊर्ध्वाधर जोड़ एक दूसरे के ऊपर आते हैं।
ईंट लिबास वास्तव में एक घर की बाहरी दीवार से सटे पूर्ण आकार की ईंटों की एक परत है। भीतर की दीवार संरचना का वजन सहन करती है न कि ईंट। इस उदाहरण में, ईंट केवल सजावटी तत्व के रूप में कार्य करता है।
भारतीय निर्माण में प्रयुक्त शीर्ष 7 प्रकार की ईंटें
  1. सन-ड्राइड ब्रिक्स। गैर-जले हुए ईंटों को भी कहा जाता है, ये ईंटों के सबसे आदिम उदाहरणों में से एक हैं, इस प्रकार की ईंट को भट्टों में नहीं जलाया जाता था लेकिन सख्त करने के लिए धूप में सुखाया जाता था। ...
  2. जली मिट्टी की ईंटें। ...
  3. ऐश ईंटें उड़ाना। ...
  4. कंक्रीट की ईंटें। ...
  5. इंजीनियरिंग ईंटें। ...
  6. कैल्शियम सिलिकेट ईंटें। ...
  7. पोरोथर्म स्मार्ट ईंटें या इको ईंटें।
ब्रिक मेसनरी निर्माण के कुछ टिप्स
  1. अच्छी ईंट की चिनाई ईंटों का उपयोग करना चाहिए जो एक समान रंग और आकार के साथ ध्वनि, कठोर, अच्छी तरह से जली हुई और सख्त हैं।
  2. ईंटें कॉम्पैक्ट, सजातीय, छिद्रों, दरारें, खामियों, हवा-बुलबुला और पत्थर की गांठों से मुक्त होनी चाहिए। इन ईंटों को उपयोग करने से पहले कम से कम दो घंटे तक पानी में भिगोकर रखना चाहिए।
  3. ईंट के काम में, ईंटों को उनके बिस्तर पर रखा जाना चाहिए, जिसमें मेंढक ऊपर की ओर इशारा करते हैं।
  4. ईंट पाठ्यक्रमों को वास्तव में क्षैतिज रखा जाना चाहिए और वास्तव में क्षैतिज होना चाहिए और वास्तव में ऊर्ध्वाधर जोड़ों का होना चाहिए।
  5. जहां तक ​​संभव हो ईंट-पत्थर के इस्तेमाल को हतोत्साहित किया जाना चाहिए।
  6. जहां तक ​​संभव हो ईंट की दीवारों को उचित बंधन के साथ समान रूप से उठाया जाना चाहिए। आम तौर पर एक दिन में ईंट चिनाई निर्माण की ऊंचाई 1.5 मीटर से कम होनी चाहिए। विभिन्न भागों के बीच की दीवार के उदय में अधिकतम अंतर एक मीटर से अधिक नहीं होना चाहिए।
  7. जब मोर्टार हरा होता है, तो चेहरे के जोड़ों को पलस्तर या इंगित करने के लिए एक उचित कुंजी रखने के लिए 12 से 19 मिमी की गहराई तक रेक करना चाहिए। मोर्टार जोड़ों को फ्लश किया जाना चाहिए और समाप्त हो जाना चाहिए यदि कोई पलस्तर या इंगित नहीं किया जाना है।
  8. पुराने और नए के बीच निरंतर बंधन सुनिश्चित करने के लिए, दीवारों को दांतेदार सिरे से बंद किया जाना चाहिए।
  9. चूना मोर्टार में तैयार ईंटवर्क को 2 से 3 सप्ताह की अवधि के लिए ठीक किया जाना चाहिए। सीमेंट मोर्टार के साथ ईंटवर्क के मामले में इस अवधि को 1 से 2 सप्ताह तक कम किया जा सकता है।
  10. उच्च स्तर पर ईंटवर्क को पूरा करने के लिए, एक एकल मचान का उपयोग किया जाता है।
धातु के संबंध तब मुड़े हुए होते हैं, ताकि वे क्षैतिज हों जहां वे मोर्टार जोड़ों में इम्बेल्ड हो जाते हैं क्योंकि ईंट लिबास की दीवार का निर्माण किया जाता है। नींव की दीवार के बाहरी किनारे पर ईंट का लिबास बनाया गया है ताकि ईंट के लिबास और शीथिंग के बीच एक इंच का वायु स्थान बना रहे।
